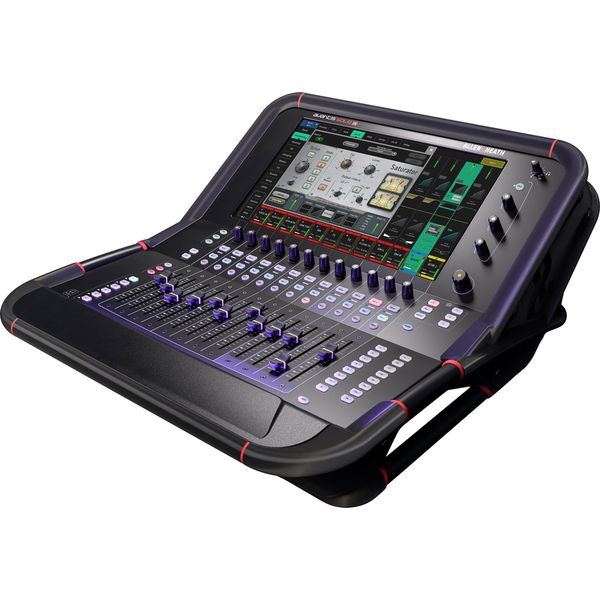

Allen & Heath Avantis Solo Ultra

96-Channel Digital Mixer

56 buses
96 kHz XCVI FPGA core with very low latency (0.7 ms)
Freely configurable mix bus architecture
Very sturdy, solid metal housing
User interface combines physical controls with touchscreen controls for the fastest and most intuitive workflow
12 stereo FX returns
Eight RackUltra FX slots
16 DCAs
15.6" full HD displays with capacitive touchscreens with gesture control
AMM (Automatic Mic Mixer) for up to 64 channels across 1, 2 or 4 zones
Fully assignable layout
72 fader strips (12 faders, 6 layers) with optional master section
SLink port for connection to remote I/O extensions and the ME Personal Mixing System
Inputs: Six analogue XLR, 1 stereo AES
Output: Six analouge XLR, 1 stereo AES
2 I/O slots for 128 x 128 at 96kHz each – for optional cards including Dante, MADI and gigaACE
User-configurable rotary controls
18 assignable SoftKeys
Comprehensive metering with multi-point peak detection
USB stereo recording and playback
BNC Word Clock
Dimensions (H x W x D): 269 x 546 x 627 mm
Weight: 17.5 kg
Includes dPack
