Duratruss DT 34/3 Flex Tower

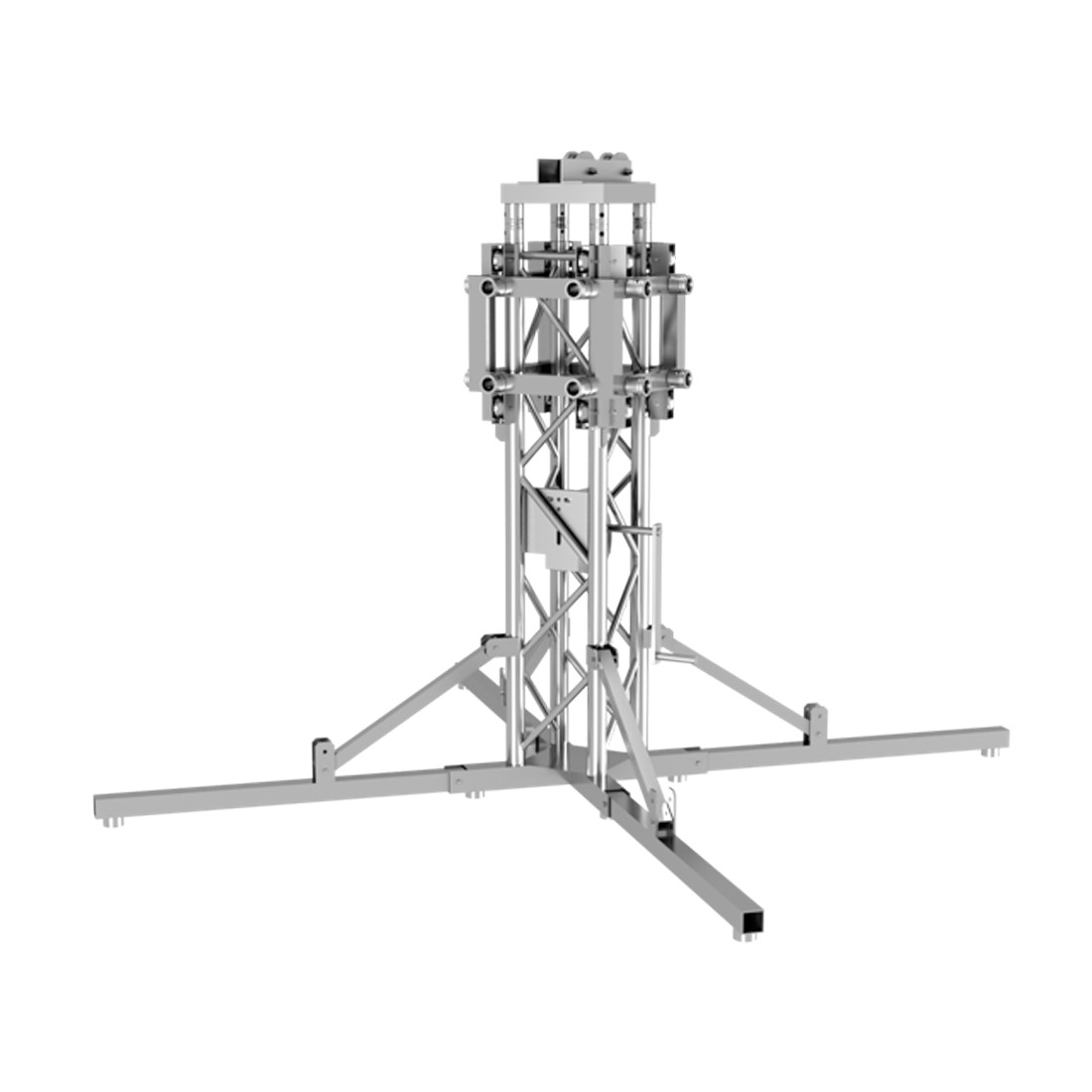

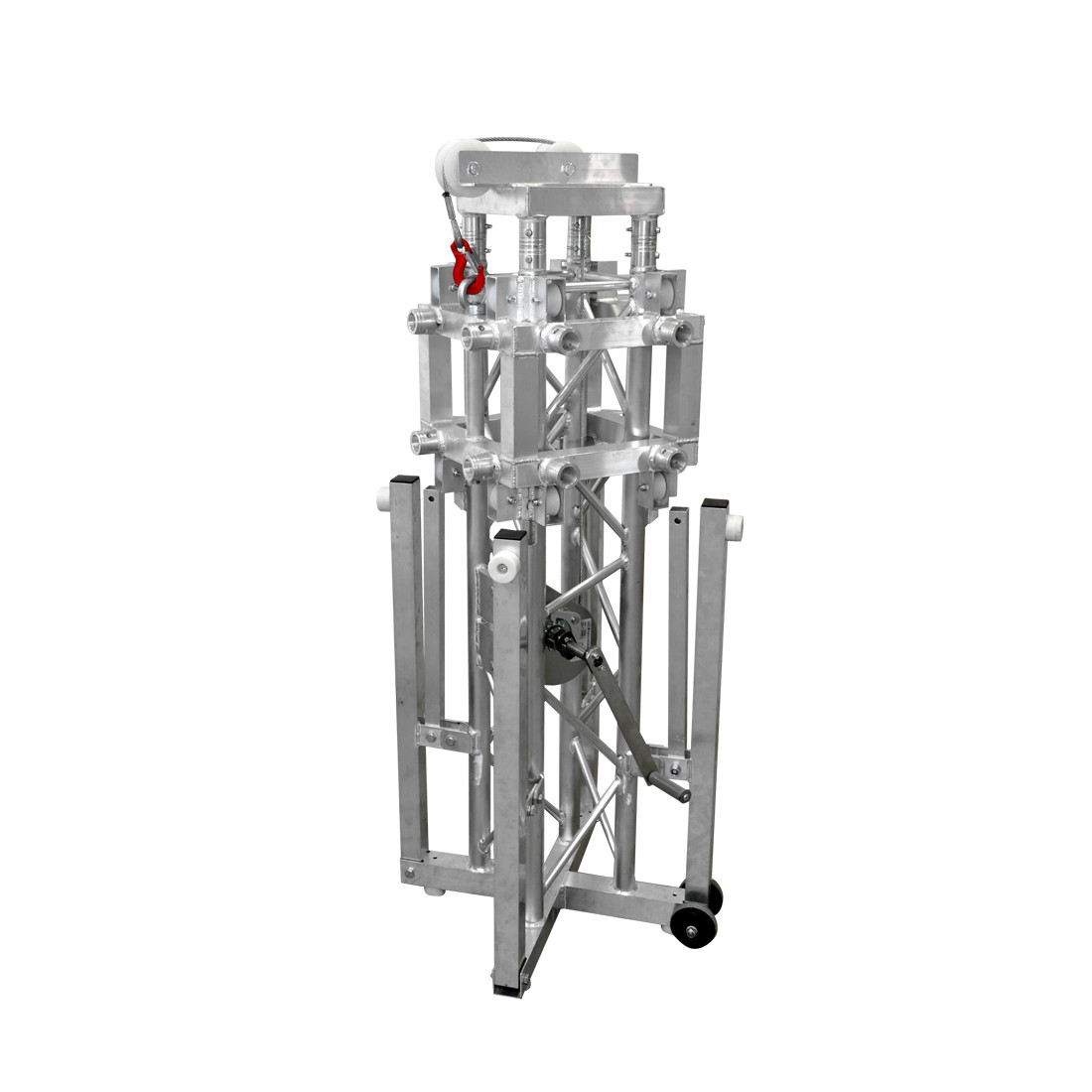

The DT 34/3 Flex Tower from Duratruss is a unique transportable truss tower in which all parts are attached to the system for ease of transport and setup. This ‘no loose parts’ system has a loading capacity of 500kg and a maximum height of 6.5 meters (trussing opitional). Ideal for events of all types when a quick and easy truss tower solution is required, the lightweight (75kg) and easy-to-handle construction is compact for easy storage and transport. Flex Tower is made of sturdy aluminum alloy and includes a durable manual Columbus McKinnon winch which meets the strict BGV-C1 German regulation.

Parts List DT 34-Flex Tower

Pc Description

1pc Sleeve Block

4pc Long Outtrigger with spindle

1pc Top Section

4pc Hinge Section

1pc Hand winch

1pc Base Section

1pc DT 34/3-150 (50 x 3 mm tube)

Transport Wheels

Technical specs:

- Diametrics main pipe: 50mm

- Wall thickness: 3 mm

- Material: Aluminium EN-AW 6082 T6 (AlMgSi1)

- Dimensions braces: 25 x 3 mm

- Included in delivery: as shown above

- Length: 510mm

- Width: 510 mm

- Height: 1770 mm

- Dimension extended Ø: 2510mm

- Max. height: 6,5 m

- Weight: 75 kg

- Loading Capacity: 500kg

Please notice that you need additional 5m straight DT34/3 truss elements, which are not included.
